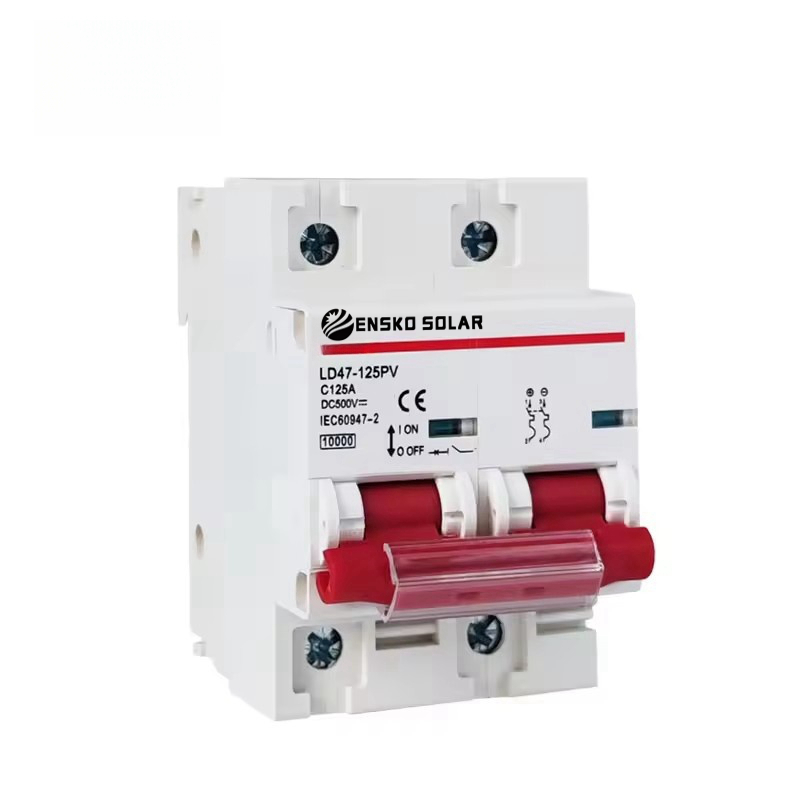

ENSKO SOLAR DC MCCB Breaker 2P,500V, 125A Red color
Overview
DC MCB 80A-125A Solar 2P DC Renewable Energy Circuit Breaker
PV DC breaker supplementary protectors are designed to provide over-current protection within appliances or electrical equipment, where a branch circuit protection is already provided or not required. Devices are designed for direct current (DC) control circuit applications.
Brand Name | ENSKO SOLAR |
Model Number | LD47-125PV |
Product name | Miniature Circuit Breaker |
Poles | 1P 2P 3P 4P |
Rated current | 80A 100A 125A |
Rated voltage Ue | 500V; 1000V |
Rated Frequency | 50/60HZ |
Protection Degree | IP20 |
Mounting | On the Din rail EN 60175 (35mm) |
Rated Breaking Capacity | 4.5KA; 6KA; 10KA |
BCD Curve | B; C; D |
Installation altitude | no more than 2000m |
Storage Temperature | -5 ~ 40℃ |
